Precision Gear Grinding Fixture

Precision Gear Grinding Fixture

Self Centering
Ultra High Precision
Quickly Change
Free Adjustment

Inquiry Now

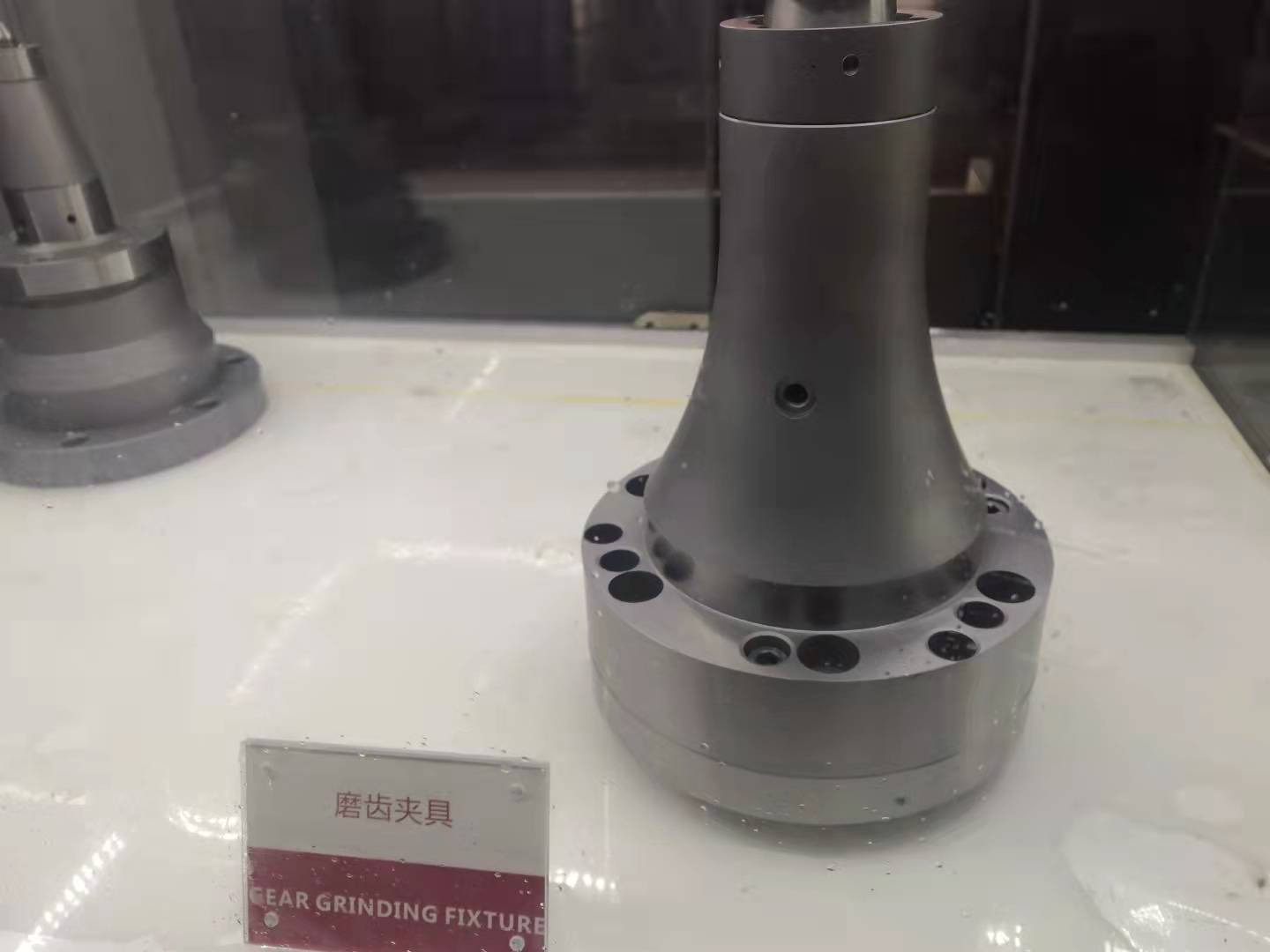

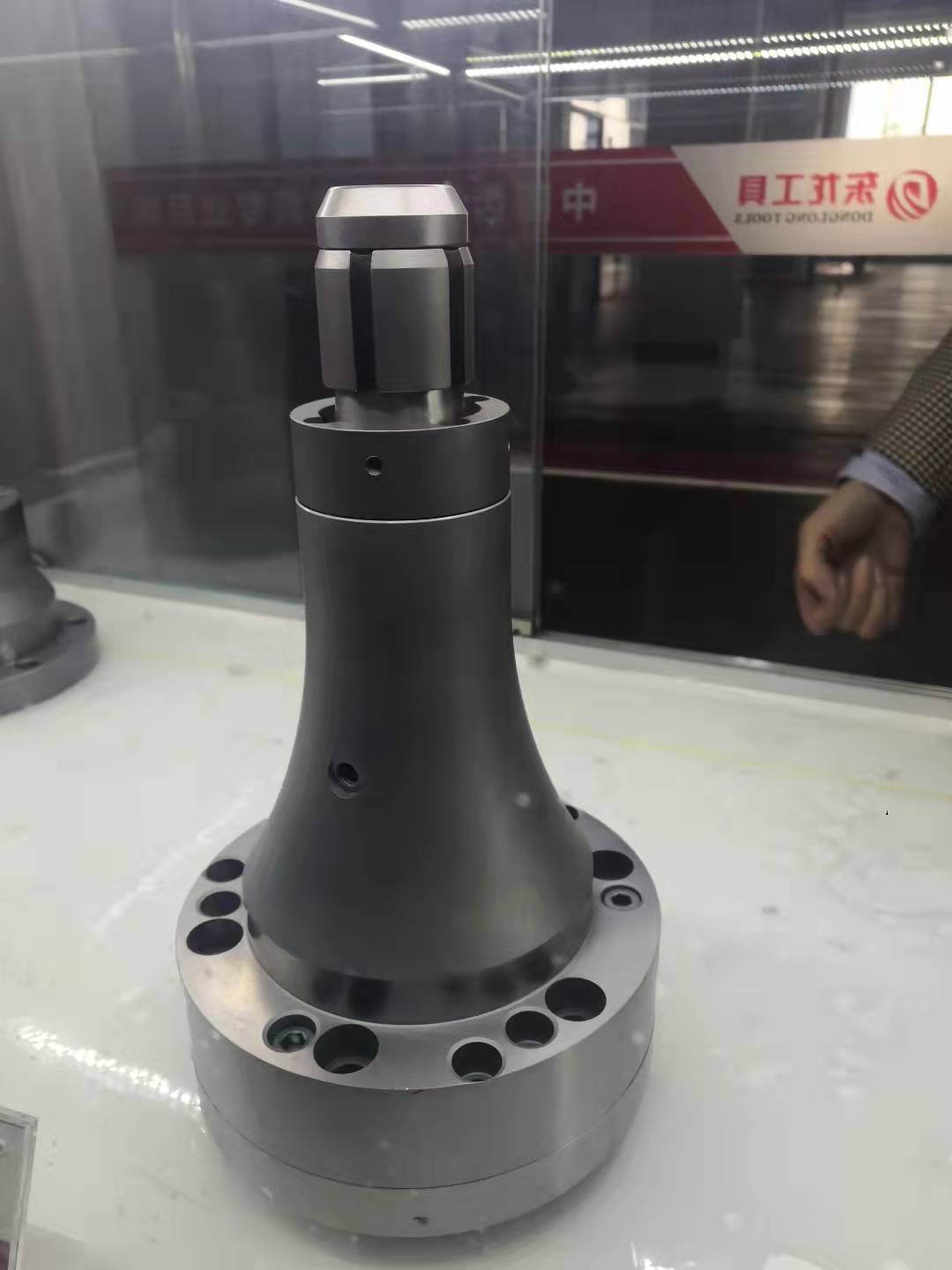

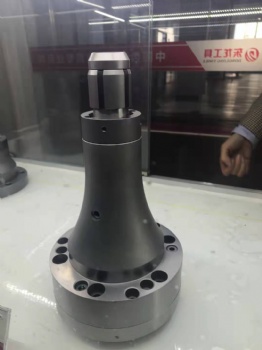

High Precision Gear Grinding Fixture ( complete one set, contain base plate, grinding parts, collet, inner pull rod)


The machine tools which specially for gear fine finish.

Collet in the grinding set, can be replaceable separately.  The Fixture Precision can reach 0.003mm.


Advantage

Good elasticity, large clamping range;

Original patented viscose technology to ensure a wider range of clamping and damping capacity;

Sealing structure design, good anti-fouling effect;

Simple replacement, can realize automation;


Specification as below:
