What is a Fixture?

What is a Fixture?

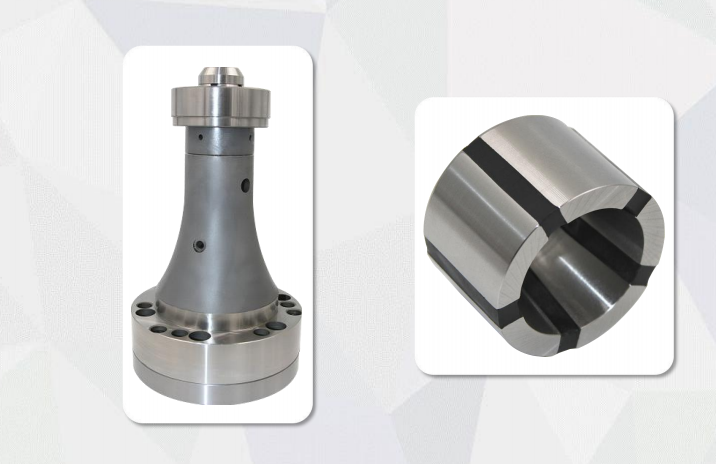

A fixture is a process device used in mechanical manufacturing to secure the object being processed (the workpiece), ensuring it occupies the correct position to undergo construction, inspection, or assembly. Simply put, it's a tool that "holds" the workpiece, guaranteeing it remains stable and immobile during processing. Fixtures are essential equipment for ensuring product quality, improving production efficiency, and reducing labor intensity.

1. Classification of Fixtures

Fixtures can be classified in various ways. Here are the primary methods:

1.1 By Power Source (Most Common Method)

• Manual Fixtures:

• Working Principle: Relies on human force applied through mechanisms like screws, levers, or eccentric wheels to generate clamping force.

• Characteristics: Simple structure, low cost, short manufacturing cycle. However, clamping force can be unstable, efficiency is lower, and operator labor intensity is high.

• Examples: Bench vices, machine vise, various clamp plate setups.

• Pneumatic Fixtures:

• Working Principle: Uses compressed air as the power source to drive a cylinder piston, which then transmits force to the clamping element via a mechanism.

• Characteristics: Fast operation, stable clamping force, clean and pollution-free, easily automated. One of the most commonly used fixtures in modern production.

• Examples: Welding fixtures on automotive production lines, pneumatic quick-change fixtures on machining centers.

• Hydraulic Fixtures:

• Working Principle: Uses hydraulic fluid as the power source to generate immense clamping force through hydraulic cylinders.

• Characteristics: Very large and stable clamping force, compact structure, smooth transmission. However, requires a complete hydraulic system (pump, valves, piping), higher cost, potential for oil leaks.

• Examples: Fixtures for large workpieces (e.g., engine blocks, transmission housings) on machining centers.

• Electric Fixtures:

• Working Principle: Uses an electric motor as the power source, driving the clamping element through a reduction mechanism.

• Characteristics: Precise control, easy to program. However, cost is higher, and response speed may be slower than pneumatic or hydraulic systems.

• Examples: Some high-precision inspection fixtures or robot end-effectors.

• Magnetic Fixtures:

• Working Principle: Uses magnetic force generated by electromagnets or permanent magnets to secure ferromagnetic workpieces (e.g., steel, iron).

• Characteristics: Clamping force is evenly distributed across the entire contact surface, preventing workpiece deformation caused by localized clamping force. Ideal for thin-walled workpieces. Only suitable for magnetic materials.

• Examples: Magnetic chucks on surface grinders, worktables on EDM machines.

1.2 By Specialization Level

• Universal Fixtures: Standardized in size and specification, can be used for a variety of workpieces. E.g., Three-jaw chucks, four-jaw chucks, indexing heads, bench vices.

• Dedicated Fixtures: Specifically designed and manufactured for a particular process of a specific product. Highly efficient, but have long design and manufacturing lead times, become obsolete when the product changes.

• Modular Fixtures: Consist of a set of pre-manufactured, standardized components with various shapes, sizes, and functions. Can be assembled into various fixtures as needed and disassembled for reuse after the task. Ideal for prototyping, small-batch production, and temporary tasks.

• Adjustable Fixtures: Can be adapted to clamp multiple similar workpieces by adjusting the position of certain components or replacing a few parts.

1.3 By Associated Machine Tool

• Lathe Fixtures (e.g., faceplates, angle plates)

• Milling Machine Fixtures

• Drilling Machine Fixtures (Often called "Drilling Jigs")

• Grinding Machine Fixtures

• Machining Center Fixtures

2. Working Principles of Fixtures

Despite the variety, the core working principles revolve around two basic concepts: Location and Clamping.

1. Location Principle - "Positions Correctly"

• Primary Datum Surface (Restricts 3 DOF): Typically a large surface, uses three locating points to restrict one translational and two rotational DOF.

• Secondary Datum Surface (Restricts 2 DOF): A long, narrow surface, uses two locating points to restrict one translational and one rotational DOF.

• Tertiary Datum Surface (Restricts 1 DOF): A relatively small side surface, uses one locating point to restrict the final translational DOF.

• Purpose: To ensure the workpiece occupies an accurate and consistent position within the fixture, and consequently relative to the machine tool and cutting tool.

• Method: Utilizes the "Six-Point Locating Principle" (also known as the "3-2-1 Rule"). A free object has six degrees of freedom in space (movement along X, Y, Z axes and rotation about these three axes). The goal of location is to restrain these six unnecessary degrees of freedom.

• Note: Restricting all six DOF is called "Complete Location". In some operations, certain DOF do not affect the process and can be left unrestrained, known as "Incomplete Location". If more than six points are used, redundantly restricting the same DOF, it's called "Over-constraint," which is unacceptable as it causes workpiece deformation.

2. Clamping Principle - "Holds Securely"

• Adequate Clamping Force: Must prevent loosening without causing excessive deformation or surface damage.

• Reasonable Clamping Points: Should act on rigid sections of the workpiece, directly opposite support points.

• Rapid Action: Especially in automated production, fast clamping/release significantly improves efficiency.

• Purpose: After the workpiece is located, a mechanism generates force to press the workpiece firmly against the locating elements, preventing movement or vibration during processing due to cutting forces, gravity, or vibration.

• Requirements:

Summary: A qualified fixture must first position the workpiece correctly ("right" place) using locating elements, and then use clamping mechanisms to keep the workpiece securely "staying put" in that correct position.

3. Application Introduction

Fixtures find applications across virtually the entire field of mechanical manufacturing.

1. Machining (Most Extensive Use)

• Turning, Milling, Planing, Grinding, Drilling: Ensure the workpiece maintains a precise position relative to the tool during high-speed rotation or movement. E.g., a three-jaw chuck holding a shaft for turning; a dedicated milling fixture securing an automotive connecting rod for slot milling.

2. Welding

• Welding Fixtures/Jigs: Used to accurately fix multiple parts to be welded in their relative positions, ensuring dimensional and geometric tolerances of the final welded product. Complex pneumatic or hydraulic welding fixtures are widely used in automotive body-in-white production lines.

3. Assembly

• Assembly Fixtures: Used to hold the base part and guide other components for quick and accurate installation into their correct positions. E.g., widely used in engine assembly lines, electronics assembly lines.

4. Inspection & Measurement

• Inspection Fixtures / Gauges: Used for quickly checking if the dimensions and geometric tolerances of a machined workpiece are within specification. The workpiece is located and clamped, and then gauges, dial indicators, etc., are used for measurement, greatly improving inspection speed and consistency.

5. Other Specialized Areas

• Laser Cutting/Welding: For securing sheets or tubes.

• 3D Printing: In some cases, fixtures are needed to secure the build platform or printed parts.

• Woodworking, Furniture Manufacturing: Various jigs and fixtures are used to ensure cutting and assembly accuracy.

Summary

Fixtures are the "unsung heroes" of modern manufacturing. While they don't perform the cutting themselves, they are the cornerstone for ensuring ** machining accuracy, consistency, high efficiency, and production safety**. From simple manual vices to complex robotic fixtures on automated production lines, their core concept always revolves around precise location and reliable clamping. Selecting the appropriate fixture is a critical step in process design.
